Golf Simulator Impact Screen Sound Dampening Guide: How to Actually Quiet Your Sim Room

A single driver swing in your simulator room peaks at 119.9 decibels at 1.7 meters from impact — the same sound level as a rock concert, and above the threshold where hearing damage begins. (Source: PubMed – Analysis of impact noise induced by hitting of titanium head golf driver, NCBI 2013) If your neighbors haven't said anything yet, they're either very patient or very far away. Golf simulator impact screen sound dampening is what separates a setup you can actually run daily from one you only fire up when the house is empty.

The good news: you don't need a $12,000 room rebuild. A smart layered approach — starting at the screen material and working outward — can cut perceived noise by half or more without sacrificing image quality or ball return. Here's what the data actually shows.

Where the Noise Actually Comes From

Most people blame the screen. The screen is loud — but golf simulator noise breaks into three distinct sources, and misidentifying the main culprit is how you end up spending money in the wrong place.

Club-on-ball impact registers 110–120 dB at the moment of the strike. This is airborne sound radiating directly from the collision — no amount of wall treatment eliminates it. (Source: Sim Golf Lab – 'How Loud is a Golf Simulator? We Did the Decibel Tests')

Ball-on-screen impact delivers 85–95 dB for driver shots and 80–90 dB for irons. This is where screen material and mounting method have the most leverage. (Source: Sim Golf Lab)

Structure-borne vibration is the sneaky one. Impact energy travels through the frame into walls and floors, then radiates as noise into adjacent rooms. This is why a neighbor two floors down still hears you — it's not airborne sound, it's the building shaking. Decoupling your frame and treating the floor specifically targets this path.

What the Data Says: Golf Simulator Noise by the Numbers

Four numbers worth understanding before you spend a dollar on dampening:

119.9 dB — Peak sound pressure from a titanium driver impact at 1.7 meters. Hearing damage risk starts around 116 dB. If you're hitting in a small, reflective room without ear protection, every driver swing is in that zone on every shot. (Source: PubMed – NCBI, 2013)

42% — How much impact noise drops when upgrading from a basic single-layer polyester screen to a premium multi-layer screen with a cushioned core. That's the single biggest screen-level acoustic upgrade available, and it costs nothing in image quality. (Source: Canvas ETC – 'Best Golf Impact Screen: Guide To Materials, Size, And Performance')

10 dB — What a 1/2-inch rubber Stomp Mat under your hitting mat delivers in floor transmission reduction. A 10 dB drop is perceived as roughly half as loud to the human ear. For $60–$100, it's the highest-ROI acoustic fix in the entire room. (Source: Second Skin Audio – 'Improve Soundproofing and Acoustics in Your Golf Simulator Room')

22% — The lower dB transmission rate of open-weave mesh screens versus tight-weave polyester, because sound waves pass through larger apertures instead of reflecting back. The catch: image clarity softens noticeably. Worth knowing before you spec your screen. (Source: Canvas ETC – 'Golf Impact Screen Materials Guide')

Your Screen Material Is the First Decision

If you're running a single-layer polyester screen, the screen itself is costing you decibels before you even look at the room. Not all screen constructions handle impact noise the same way, and the differences are measurable at every price tier.

The open-weave mesh option is acoustically interesting — sound literally passes through — but it introduces image softening that doesn't work for every projection setup. If you're comparing screen constructions on both noise performance and long-term durability, our impact screen material durability comparison covers the trade-offs across every tier.

For most builders, multi-layer woven polyester is the practical sweet spot: up to 42% noise reduction at the screen, minimal image loss, and compatibility with both front and rear projection. Adding foam backing pushes attenuation further by absorbing low-frequency rumble that woven layers alone pass through.

One mounting note worth knowing: a screen pulled too tight transmits more vibration into the frame and wall. A softer tension profile — using bungee loops or elastic attachment points — lets the screen absorb more energy at impact before it reaches the structure. Less rigid attachment means more dampening right at the source.

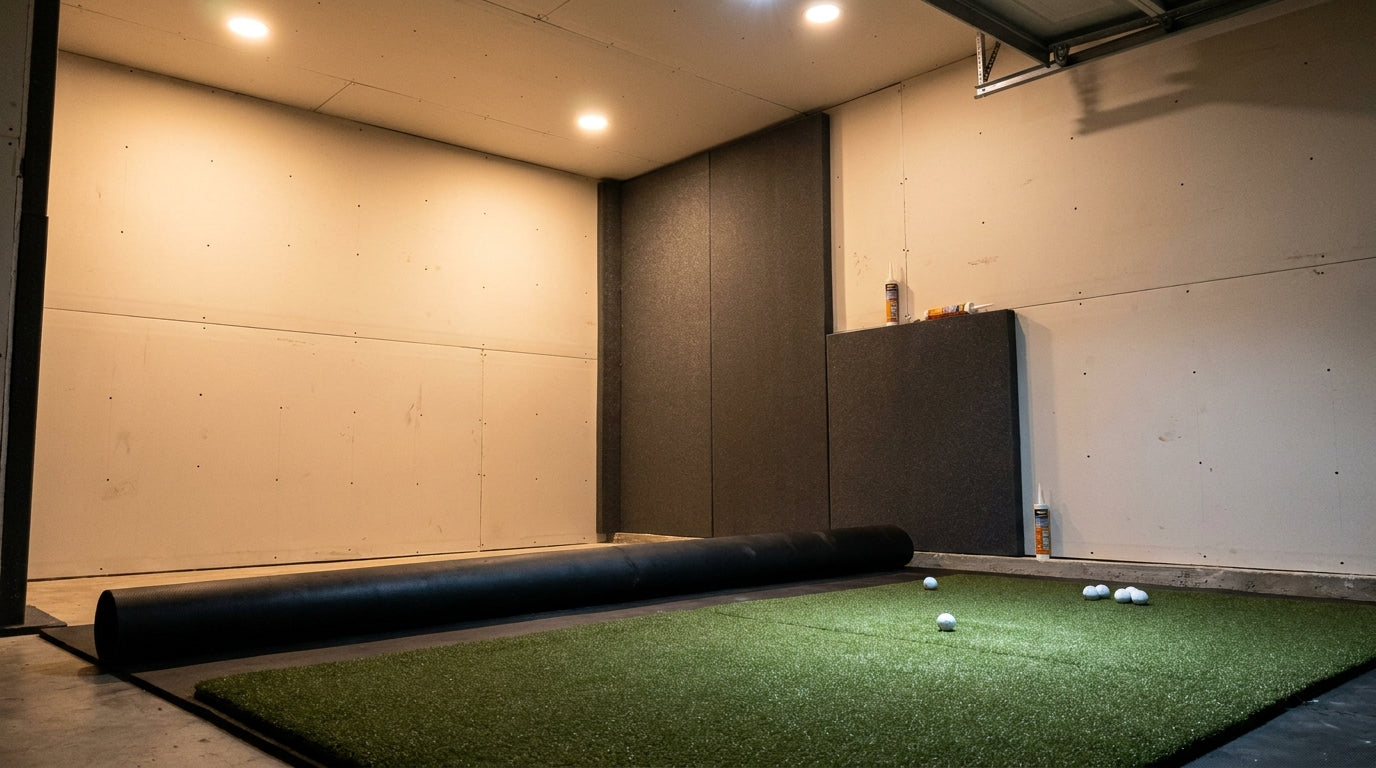

Below the Ball: Sub-Mat and Floor Treatment

Your hitting mat transfers impact energy directly into the floor, which vibrates into the joists and radiates noise into rooms below and beside you. This is the primary path for structure-borne noise — and it's completely separate from the airborne sound coming off the screen.

A 1/2-inch rubber sub-mat breaks that mechanical path for $60–$100 and drops floor-transmitted noise by approximately 10 dB — perceived as half as loud. (Source: Second Skin Audio) That's a better return than most room treatment options costing ten times more.

In multi-floor buildings, go thicker. A 3/4-inch rubber mat plus a layer of mass-loaded vinyl (MLV) between the mat and the subfloor is a serious acoustic package under $300. It delivers results you'd otherwise need expensive ceiling work to achieve from the room below.

Side wall reflections are a secondary problem worth addressing once the floor is handled. Bare concrete or drywall within 6 feet of your hitting position bounces audio back and makes the room feel louder than it measures. Two or three 2-inch acoustic foam panels on those surfaces costs under $50 and changes the feel of the room immediately. Our hitting bay wall padding guide covers exactly which surfaces to treat first and why.

Room-Level Treatment: Ranked by Noise Reduction

Once the screen and floor are handled, you're managing what escapes the room — and that's a different problem requiring different tools. Here's how the major interventions compare on approximate dB reduction.

Full room isolation is dramatically more effective — but it costs $5,000–$12,000+ for decoupled walls, ceiling, and floor systems. (Source: My Golf Simulator – 'Building a Quiet Golf Simulator – Soundproofing Tips for 2025') The middle-ground options deliver real results for a fraction of that cost. A rubber sub-mat plus acoustic foam plus double drywall with Green Glue on shared walls can stack to 30+ dB of total improvement before you touch a stud.

Building a Layered Dampening Plan

Here's how to tier your investment based on how much noise you actually need to eliminate:

Under $500 — Start Here Regardless: Rubber sub-mat (1/2-inch), two 4-packs of acoustic foam on side walls, weatherstripping on any door into the space. Combined, expect roughly 15–20 dB of improvement. This is the foundation layer — add it before anything else no matter what budget tier you end up in.

$500–$2,000 — The Sweet Spot for Most Builds: Upgrade to a multi-layer impact screen, add mass-loaded vinyl to the floor package, and hang acoustic panels on all hard surfaces in the hitting bay. The screen upgrade alone delivers 42% noise reduction at the source. Combined, expect 25–35 dB total improvement.

$2,000–$5,000 — Apartment-Grade Treatment: Double-layer drywall with Green Glue compound on shared walls, acoustic door sweeps on every entry, resilient channel ceiling treatment in the room below. This is the tier that condo and apartment builders typically need to stay on good terms with neighbors.

$5,000+ — Full Isolation: Room-within-a-room construction with decoupled walls, ceiling, and a floating floor system. You're essentially building a recording studio at this point. If you're in a converted spare bedroom in a dense building, it may be the only permanent answer. Read our apartment golf simulator setup guide before committing — there are smarter ways to approach a small-space build before you start pulling drywall.

One More Thing: Your Ears Are Still at Risk

Even a well-treated room still produces 85–90 dB at the hitting position on ball impact. That's right at the OSHA 8-hour exposure limit. None of the acoustic treatment above eliminates close-field sound — it manages what leaves the room, not what you're exposed to standing inside it.

If you're hitting 100+ balls a session multiple times per week, lightweight shooter's ear muffs rated NRR 25–31 cost about $25 and drop your personal exposure by 10–15 dB. The room being quieter for your neighbors doesn't mean it's safe for your hearing. Wear them on heavy sessions.

Ready to tackle impact screen sound dampening starting at the source? Browse our impact screen collection — every screen we carry includes construction layer details so you know exactly what you're getting before you build.
